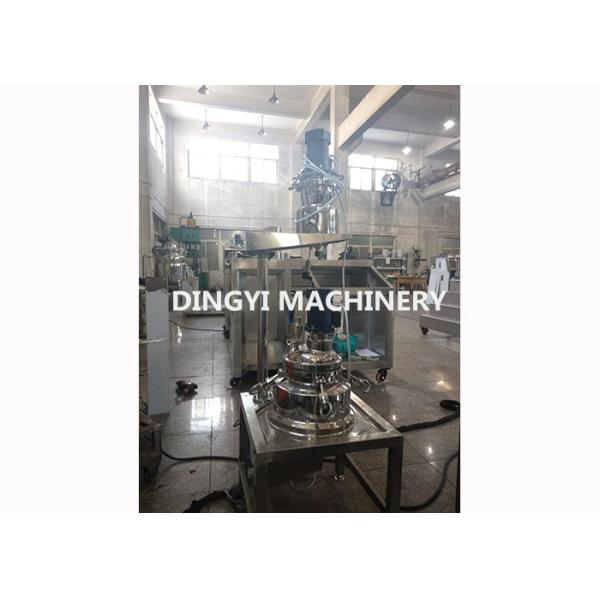

10-2000L stainless steel tank top mixer with PLC control for lab

Product Description:

1. According to your product, we can configure with different mixer type, if low viscosity product, need high speed mixer, if high viscosity product, usually high speed mixer with low speed mixer to meet different process.

2. To choose the right machine will greatly advance your production efficiency and production quality.

3. The stainless steel mixing tank can electric heating, cooling or vacuum or other process

4. we have rich practical data for different product, with the data can help customer to choose the right machine.

5. The volume of the mixing tank from 10-20000L

6. Material: sus304 or 316L stainless steel

7. the closed structure prevent the dust fly or liquid splash.

Stainless steel mixing tank specifications:

1. Volume: 10-2000L

2. Material: SS316L & SS304

3. Insulation material: rock wool

4. Structure: Jacketed vessel, vessel with jacket and insulation

5. Application: liquid mixing for pharmaceutical, cosmetic and dairy products

6. Components: mixing device, vent filter, temperature gauge, level gauge, manhole, sight glass with lamp and cleaning ball or according to client’s detailed requirement.

Mixing tank as a equipment are suitable for the pharmaceutical & cosmetic industries for
1. Pharmacy industry: Syrup, Suspension, Injection Solution, Eyedrop, oral solution, injection solution,Carbomer of gel.

2. Health product industry: soft gel preparation, etc

3. Cosmetic industry:cream, ointment, lotion,toothpaste, hair color

Capcity: 50L-2000L

Pressure: Atmospheric pressure or pressure vessel (0.1mpa-0.6mpa)

Material: Stainless steel 316L, 304 or special reqirements

Mixing type for choose:paddle mixer, propeller mixer, PTFE scraper mixer, Top homogenizer, bottom homogenizer, bottom magnetic mixer, high shear mixer

Heating Choose:Steam or electrical heating or hot-water circulation.

Structure: signle layer or with insulating layer or with jacket and insulating layer.

Thermal insulation material for choose: PU or rock wool etc.

Jacket type for choose: full jacket, dimple jacket, coil jacket, half pipe.

List of nozzles(for choose): Manhole, CIP and SIP port, pressure gauge, temperature sensor, material inlet, material outlet, respirator(vent filter), sight glass, lamp, handhole, vacuum port, reserve port etc.

CIP: cleaning ball.

SIP: As a option.

Loading cell: use Mettler Toledo as a option.

Control type:
1: button control

2. PLC control:use Siemens PLC S200 (S300 as a option), Siemens HMI(3-LEVEL password and Recipe management as option).

As a professional manufacturer and exporter, DingYi I/E Industrail Co., Ltd Engages in the research, design, manufacture and sale of various machines.

Our factory specializes in making kinds of pharmaceutical, cosmetic and food machinery, for instance, Vacuum emulsifying mixer, Suppository vacuum emulsifier, Toothpaste making machine, Tube filling and sealing machine, Bottom homogenizing cream mixer, Soft gel preparation system, Dry type granulator, Color mixing machine, CIP cleaning system, Stainless steel mixing and storage vessel, Gel storage tank, Online high-shear emulsifier, Sanitary rotor pump and centrifugal pump, Colloid mill, water and powder mixer, Belt conveyor.


Our company always contributes to produce products satisfying customers.

We are very pleased to cooperate with you to create our bright future.
